AVM Products

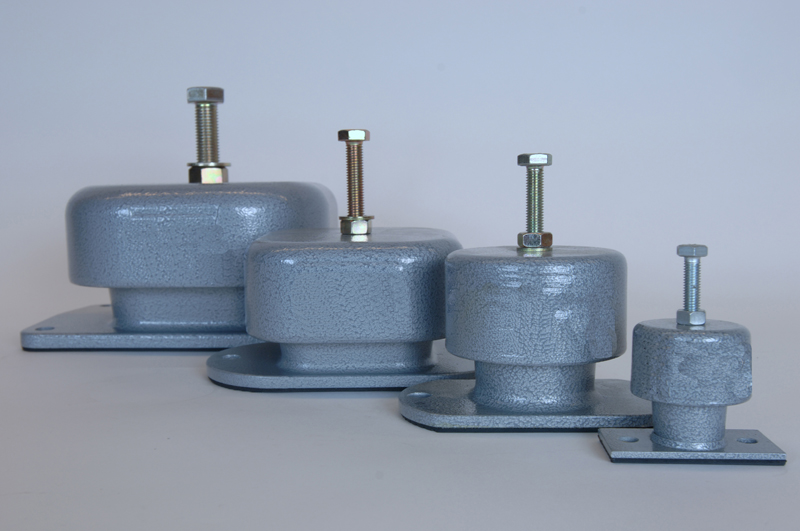

AVM’s product range consists of: circular spring isolators, low profile multiple spring isolators, heavy-duty spring isolators and viscous dampers.

The range of standard spring isolators allow up to 25 mm static deflection and are specially designed for land-based installations with high vibration isolation. Where greater static deflections is required, the 50 mm deflection springs in the standard housing can be selected.

All mountings are fitted with a built-in levelling device, the operation of which is described in the installation instructions. The housings, manufactured in aluminium for general use and Admiralty gunmetal for offshore use, are powder coated and provide weatherproof protection to the steel working components. Levelling screws are plated. Elastometric components are manufactured in natural rubber or neoprene to suit operational environments.

Standard spring isolators Medium and heavy duty spring isolators
